Type 2 Charging cable Pigtail - 3 Phase - 16A

3 - phase, 16A charging cable Pigtail using female Type 2 connector for vehicle side and high quality European made cable..

Your choice of cable length

129,00 € incl tax
Shipping: Max 1 day production time before shipping

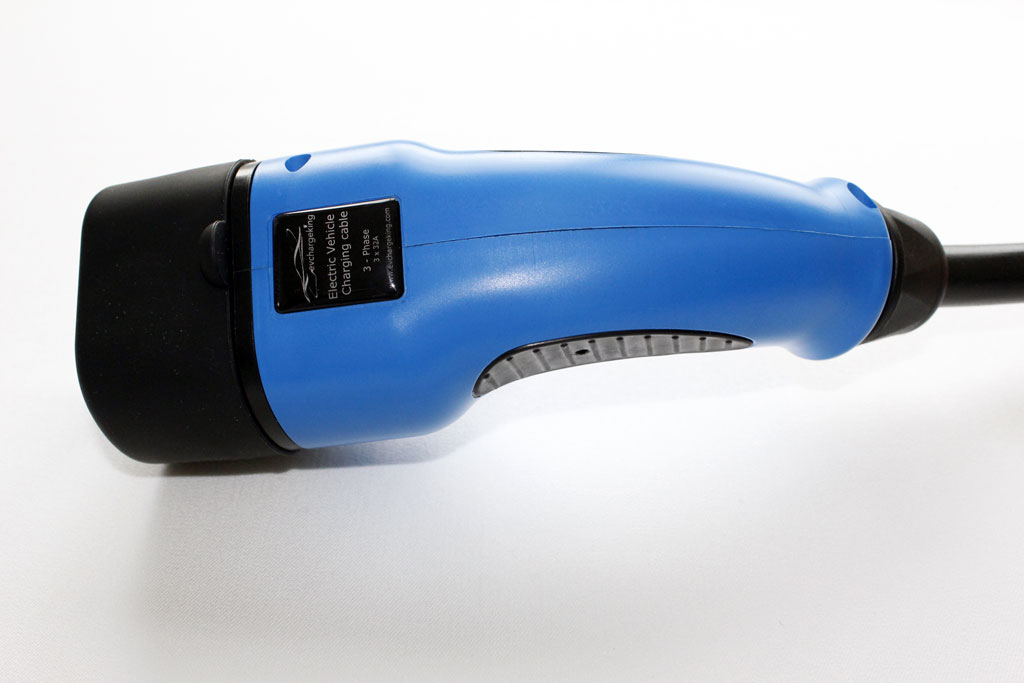

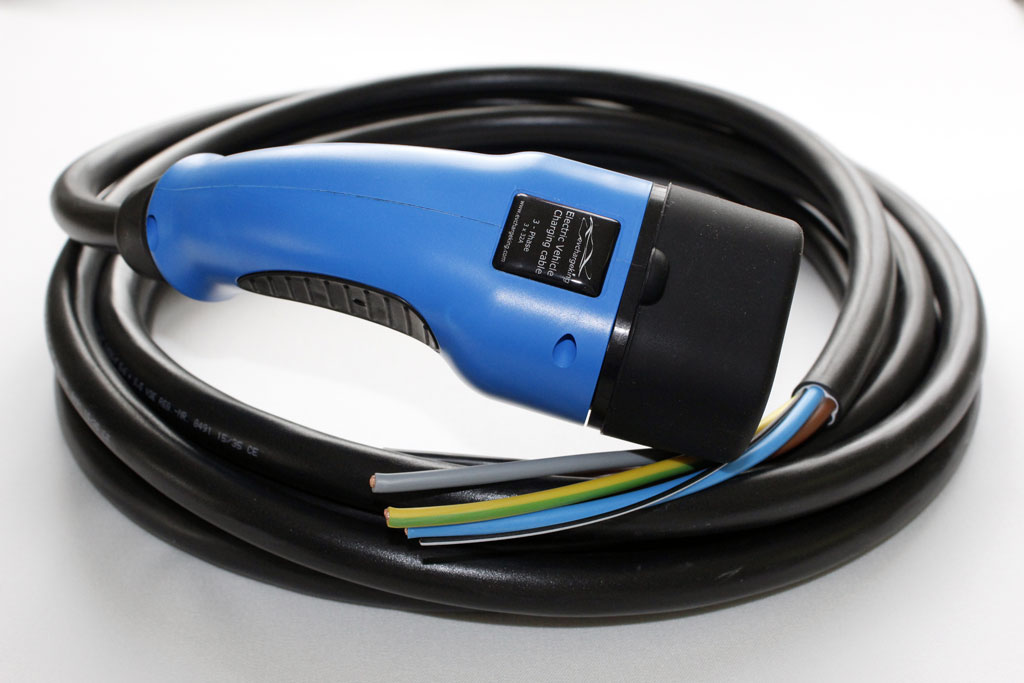

This charging cable has a Type 2 female connector on one end of the cable, and an open end at the other end. This cable can be used in tethered charging stations.

Attention: You cannot connect a blue or red commando plug to this pigtail and charge from a commando socket. It can only be used in combination with a charging station!

The cable has 5 x 2.5mm² conductors, allowing 3 x 16A current, which represents a charging capacity of 11 kW.

You can order any length you need by selecting the appropriate value in the dropdown selector. For lengths not specified in the list, just send us a message and we will quote you for your special request.

We don't use the typical Chinese cable, but a high quality European cable, that is 20% lighter and thinner while being more durable! The connectors have rustfree contacts.

Don't forget to choose the right length when ordering. It is better to have 1 meter too long than 10cm too short! The length of the EV cable is measured including the plugs (male/ female) on either end of the EV cable. When the charging point is on the other side of the car's chargeport, you really need a minimum of 4 meter to be safe.

Specifications:

Connectors Type 2 female on vehicle side, open end at the other side.
Cable 3-phase, 5 x 2.5mm² + 0.75mm², max electric power: 3 x 16A (11 kW charging capability at 400V)
Color Blue / Black

Related products

Except for the "Lucky 7" versions, our EV cables are made-to-order (custom made) for each customer order. Please refer to the return & refunds page if the cable shipped is defective or damagedWe encourage all consumers to carefully choose the length of the EV cable and type of EV cable before placing an order, to avoid ordering either the wrong length or cable type. We are more than happy to answer questions from the customer before the order is placed, such that the customer can purchase the correct EV cable for their needs.
