e-TAP 11 kW Mobile charger

3 x 16A adjustable mobile charger to charge your electric vehicle from a red 16A 3-phase CEE socket.
449,00 € incl tax
Delivery time: Immediately available

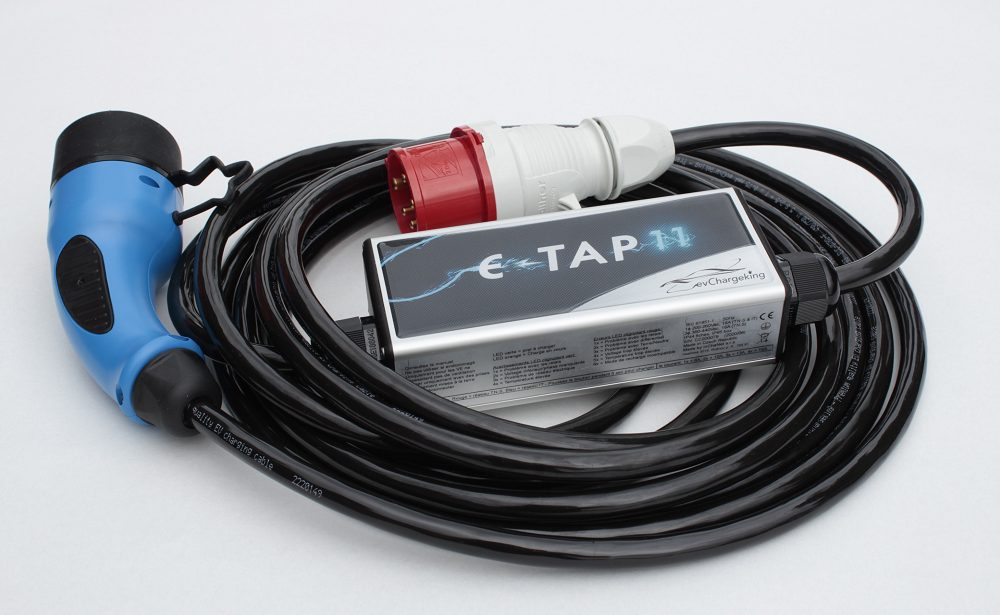

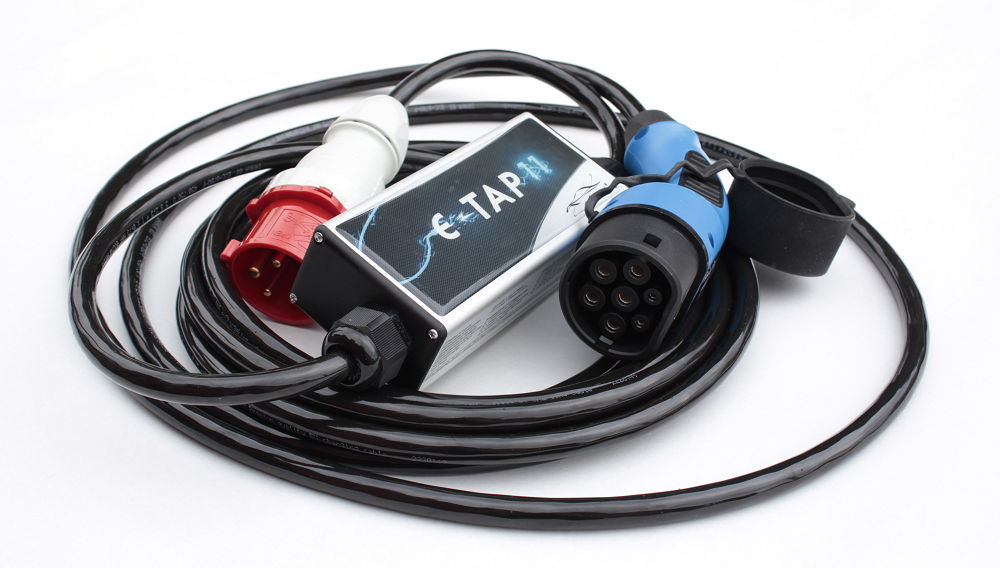

Our e-TAP 11 kW 8 meter length mobile charger can be used to charge your electric vehicle from a red 16A 3-phase CEE socket. The power is adjustable to 3x6A, 3x10A, 3x13A or 3x16A. Your electric vehicle will charge at a maximum rate of 11 kW.

The charger has a multitude of safety features, including monitoring of the CEE plug temperature, AC and DC residual current leak detection, overheating, ...

Please make sure you charge from a correctly installed red 16A CEE socket as depicted on the left, that is rated to deliver 3x16A, installed with minimum 2.5mm² wires. You can order a high quality wall socket that is IP 67 rated for in- or outdoor use with the charger.


The charger features:

  • Earth leakage protection (AC and DC)
  • Internal current switching problem detection
  • Over current protection
  • Over voltage protection
  • Low voltage protection
  • Short circuit protection
  • Overheat protection
  • Wall plug overheat protection
  • Adjustable charging amps (3x 6A,10A,13A,16A)

This mobile charger will also work in case neutral and phase are reversed or when neutral is missing alltogether (3 x 230V network).

Download the e-TAP manual by clicking here

Specifications:

Connector Type 2 female plug
Cable 3 - phase, 5 x 2.5mm² + 0.75mm². Rated charging current: 3 x 16A (11 kW charging capability)*
Color Grey / Blue / Black
IP Rating IP65
Electric supply connector CEE16 (red 5-pin plug for 3 x 16A)
Housing & Dimensions Aluminium housing: heigth: 50mm x width: 80mm x length: 190mm - Total Cable length: 8m
Weight 3,35kg
Charging Specification Mode 3 / IEC 61851 communication unit Compliant to: withIEC 62196, IEC 61851-1, CE, EMC, RoHS
Charging Output 16A / 3 Phase unit: max 11kW @ 3-phase 400V
Overcurrent & Fault Protection RCD typeA-EV (30mA AC, 6mA DC)
Status Indication Tri-Colour LED
Operating temperature –40°C to 50°C

*Max current and charging time depends on the characteristics of the electric vehicle that is being charged. The EVSE can limit max current in extreme temperatures.
